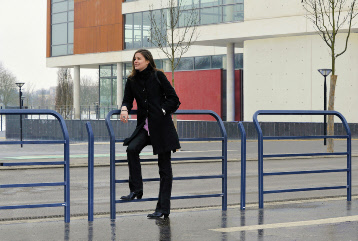

Conviviale Railings

• Two lengths: 1500 and 1000 mm.

• Height above the ground: 1100 mm.

• Total height: 1280 mm.

• Frame: 40 x 40 mm steel tubing, elegantly curved.

• Handrail: 30 x 30 mm steel tubing; ground clearance: 150 mm.

• Finish: zinc-plated & painted.

• Concrete directly into the ground.

Standard CONVIVIALE Railing

All railings in the CONVIVIALE line can be made removable using the removable socket kit. Two sockets are used in the kit, one of which locks the railing in place using a triangle key screw. They are equipped with a fixed boss to maintain the safety of users when the barrier is not in place.

• Lockable and un lockable using an 11mm triangle key screw and retractable bolt providing total stability and security when the railings are in place.

• Galvanised for complete corrosion protection.

• Drains naturally through sub-surface gravel.

• Reservoir allows for the accumulation of sand and dust.

• Lock protected by a black-lacquered flap.

• The 40 x 40 ‘inter-railing’ bollards can be made removable by using a lockable socket.

• Railings and bollards sit depth of 180 mm in the sockets to ensure that all the furniture remains at a constant even height.

Removable Kit For CONVIVIALE Railings

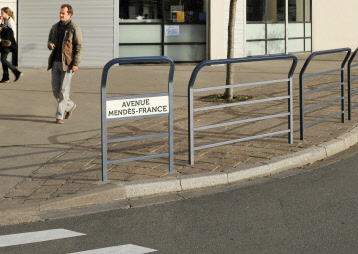

A new concept in ensuring safety using railings: 100 mm higher than other CONVIVIALE railings, it indicates & warns visually impaired pedestrians that they are approaching a junction or crossing.

• Lengths: 700 mm.

• Height above ground: 1200 mm.

• Total height: 1380 mm.

• Frame: 40 x 40 mm steel tubing, elegantly curved.

• Handrail: 30 x 30 mm steel tubing; ground clearance: 150 mm.

• Finish: zinc-plated & painted.

• Concrete directly into the ground.

• Signage not included.

CONVIVIALE Railings For Junctions & Crossings

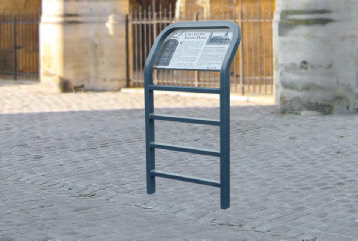

These information panels perform the same function as the junction railings. In addition, they provide users & visitors with all the practical information they need (street names, directions, tourist information, etc.)

• Same characteristics as the junction railings described above.

• Screw-fitted sheet steel, thickness 2 mm, lacquered in RAL 9006.

• Signage not included.

CONVIVIALE Information Panels

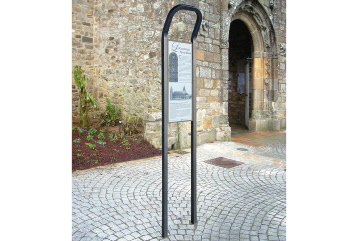

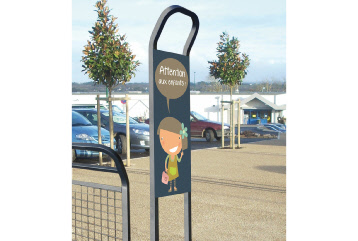

An elegant way of displaying tourist information and giving directions and blending perfectly with the other products in the CONVIVIALE line.

• Length: 400 mm.

• Height above the ground: 2055 mm.

• Total height: 2253 mm.

• Frame: 40 x 40 mm steel tubing, elegantly curved.

• Finish: zinc-plated & painted.

• Concrete directly into the ground.

• Signage not included.

Information Masts

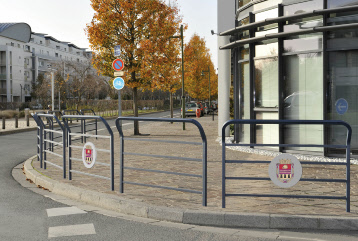

A well-integrated surface for signage information such as logos or a town emblem.

• Two lengths: 1500 and 1000 mm.

• Height above the ground: 1100 mm.

• Total height: 1280 mm.

• Frame: 40 x 40 mm steel tubing, elegantly curved.

• Handrail: 30 x 30 mm steel tubing; ground clearance: 150 mm.

• Finish: zinc-plated & painted.

• Concrete directly into the ground.

• Surface for signage on both sides.

• Signage not included.

CONVIVIALE “My Town” Railings

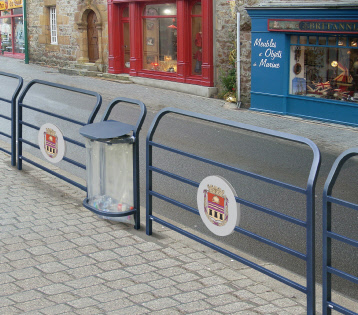

The first litter bin designed to fit naturally into a row of railings with a minimum of obstruction on the pavement.

Its lower tap rail enables visually impaired people to detect it.

The use of transparent litter bags is a simple but efficient means of preventing criminal attacks.

• Lengths: 500 mm.

• Height above the ground: 1100 mm.

• Total height: 1280 mm.

• Frame: 40 x 40 mm steel tubing, elegantly curved.

• Handrail: 30 x 30 mm steel tubing; ground clearance: 150 mm.

• Lid: 3 mm lacquered sheet aluminium.

• Wire-strainer to hold the plastic bag in place supplied.

• Finish: zinc-plated & painted.

• Concrete directly into the ground.

• Accommodates 110-litre sacks (not included).

CONVIVIALE Anti-Terrorist Litter Bin

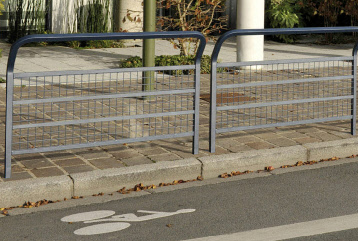

The railing with mesh is for areas where maximum safety protection is required.

• Two lengths: 1500 and 1000 mm.

• Height above the ground: 1100 mm.

• Total height: 1280 mm.

• Frame: 40 x 40 mm steel tubing, elegantly curved.

• Upper and lower rails: 30 x 30 mm steel tubing; ground clearance: 150 mm.

• Intermediate cross-members: 30 x 20 mm steel tubing.

• Finish: zinc-plated & painted.

• Concrete directly into the ground.

CONVIVIALE Mesh Railing

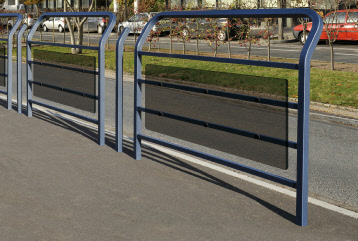

Protecting pedestrians from puddle splashing and spray from passing vehicles in wet weather.

• Smoked PMMA 8 mm pane.

• Two lengths: 1500 and 1000 mm.

• Height above the ground: 1100 mm.

• Total height: 1280 mm.

• Frame: 40 x 40 mm steel tubing, elegantly curved.

• Rails: 30 x 30 mm steel tubing; ground clearance: 150 mm.

• Finish: zinc-plated & painted.

• Concrete directly into the ground.

CONVIVIALE Anti-Spray Railing

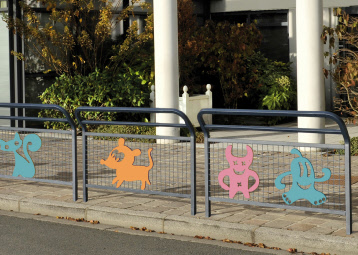

A railing providing a safe environment for children, adding bright colours and fun characters to a pavement, combining mesh and supplementary crossbeam for extra safety.

• Two lengths: 1500 and 1000 mm.

• Wire mesh 5 mm in diameter.

• Height above the ground: 1100 mm.

• Total height: 1280 mm.

• Frame: 40 x 40 mm steel tubing, elegantly curved.

• Rails: 30 x 30 mm steel tubing; ground clearance: 150 mm.

• Finish: zinc-plated & painted.

• Concrete directly into the ground.

• Cartoon figures are an optional extra.

CONVIVIALE “Home-Time” Railing
