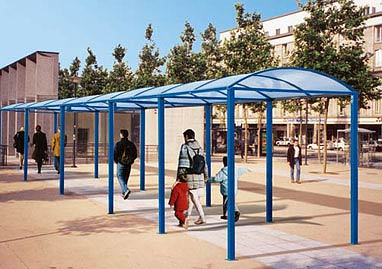

Covered walkway, with or without side cladding, to link industrial premises, school or administrative buildings

and to shelter pedestrian areas from inclement weather.



Structure

A sturdy unit. Framework comprising steel 80 x 80mm uprights, mounted on base plates. Upper part includes a U section to accommodate the roof.

2 versions: Basic 2500mm unit or a version with extension module.



Roof

The roof framework features two aluminium tubular crossbeams and two aluminium rainwater gutters that are fixed to built-in U-sections of uprights.



Cladding

All cladding is optional. Side cladding is delivered in two parts. Aluminium profile frame, 10mm translucent anti-UV cellular polycarbonate glazing.



Finish and assembly

Painted, galvanised steel. Available in our RAL colours. Assembly instructions supplied. Installation on base plates and expansion plugs supplied.
