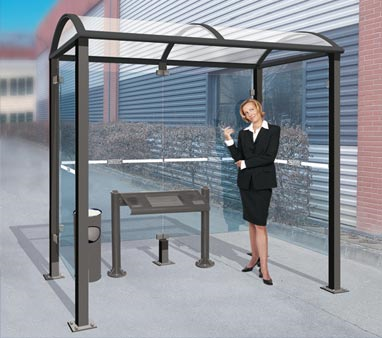

A high quality smoking shelter allying functionality and design. It creates a covered area sheltered from the wind and rain.
Dimensions
L 2500 x W 1560 x H 2680.
Framework
Square posts 80mm x 80mm on base plates. Frame comprises 2 aluminium cross beams 40 x 60mm, and two aluminium profile rainwater gutters.
Cladding
Shatter resistant “Securit” toughened safety glass cladding. Fixed cast aluminium clamps for easy replacement in the case of vandalism.
Roof
Curved profile aluminium arches hold the roof, 6mm fire and impact resistant translucent cellular polycarbonate with UV protection.
Finish and assembly
Painted anthracite grey. Assembly instructions supplied. Installation on base plates and expansion plugs supplied.
ALL SMOKING SHELTERS COMPLY WITH THE LAW

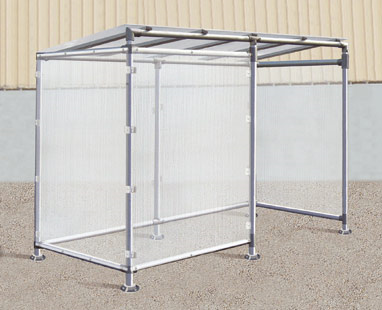

Classic smoking shelter
A simple, solid and value for money smoking shelter in aluminium and polycarbonate.
Dimensions
L 2526 x W 1861 x H 2378
Framework
Ø 50 anodised aluminium tubing
mounted on base plates.
Roof and cladding
UV treated 10mm cellular polycarbonate.
Finish and assembly
Cast aluminium joints secured
with stainless steel bolts. Assembly instructions supplied. Installation on base plates and expansion plugs supplied.
ALL SMOKING SHELTERS COMPLY WITH THE LAW

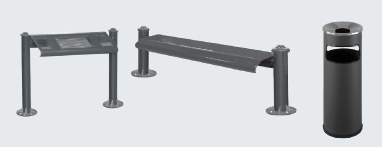

Seating options
Lugano Standing Seat
Seat L 900mm, made of 2.5mm perforated sheet steel with no sharp edges or angles. Ø 76mm steel legs with base plates. Galvanised with a paint finish in anthracite grey.
Lugano Bench Seat
Seat L 1480mm, made of 2.5mm perforated sheet steel with no sharp edges or angles. Ø 114mm steel legs with base plates. Galvanised with a paint finish in anthracite grey.
Ashtray litter bin
In steel with chrome ashtray. Dimensions Ø 250mm x 650mm with 50 l capacity bin. May be fixed to the ground or removable. Lacquered finish in anthracite grey.

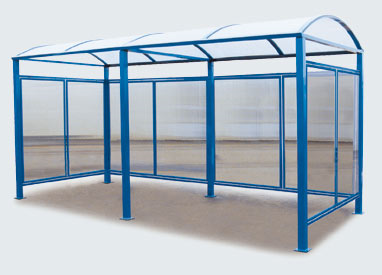

Economic smoking shelter
Can comfortably accommodate a large group of people and furniture as required. Designed for pubs, restaurants and all entertainment venues. The shelter makes large use of polycarbonate for maximum safety.
Dimensions
L 5000 x W 2170 x H 2635.
Framework
Strong steel 80mm x 80mm uprights, mounted on base plates. Upper part includes a U section to accommodate the roof.
Cladding
For maximum safety, cladding in 10mm fire and impact resistant translucent cellular polycarbonate with UV protection fitted in aluminium frames.
Roof
The roof framework features two aluminium tubular crossbeams and two fixed aluminium rainwater gutters. Roof of 10mm fire and impact resistant translucent cellular polycarbonate with UV protection.
Finish and assembly
Painted, galvanised steel available in our RAL colours. Assembly instructions supplied. Installation on base plates and expansion plugs supplied.
ALL SMOKING SHELTERS COMPLY WITH THE LAW
Venue smoking shelter
Seat options
Lugano Standing Seat
Seat L 900mm, made of 2.5mm perforated sheet steel with no sharp edges or angles. Ø 76mm steel legs with base plates. Galvanised with a paint finish in anthracite grey.
Lugano Bench Seat
Seat L 1480mm, made of 2.5mm perforated sheet steel with no sharp edges or angles. Ø 114mm steel legs with base plates. Galvanised with a paint finish in anthracite grey.
Ashtray litter bin
In steel with chrome ashtray.
Dimensions Ø 250mm x 650mm with
50 l capacity bin. May be fixed to the
ground or removable.
Lacquered finish in anthracite grey.
Seating options
Lugano Standing Seat
Seat L 900mm, made of 2.5mm perforated sheet steel with no sharp edges or angles. Ø 76mm steel legs with base plates. Galvanised with a paint finish in anthracite grey.
Lugano Bench Seat
Seat L 1480mm, made of 2.5mm perforated sheet steel with no sharp edges or angles. Ø 114mm steel legs with base plates. Galvanised with a paint finish in anthracite grey.
Ashtray litter bin
In steel with chrome ashtray. Dimensions Ø 250mm x 650mm with 50 l capacity bin. May be fixed to the ground or removable. Lacquered finish in anthracite grey.
