Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.





• Choice of four top caps;

• One side cladding;

• Choice of two different base covers;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.

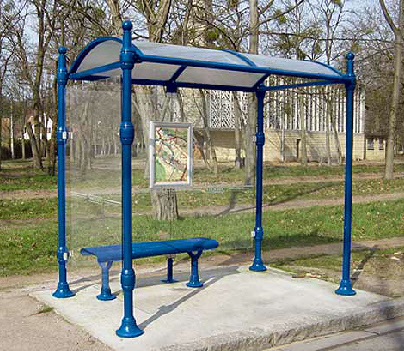

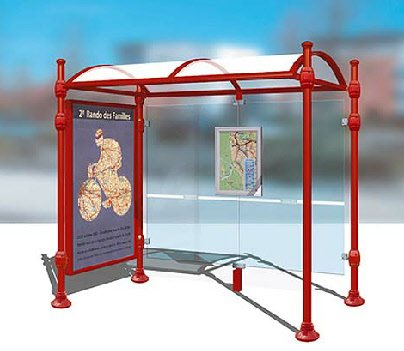

Douro Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display

A side cladding panel may be replaced by a double sided poster case.
 • Double-sided poster case model 2000 (non-illuminated)
Poster cases are manufactured in 75mm profile aluminium featuring cast aluminium corners and zinc electro plated steel backboard.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the poster display case.
 The glazing is 4mm tempered shatterproof glass.
 Poster dimensions being: H 1760 x W 1210mm.
Side and back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof
Round posts made of aluminium tube Ø 76;
 Cast aluminium collars for cladding;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.



Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.





• Choice of four top caps;

• Two side cladding;

• Choice of two different base covers;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.

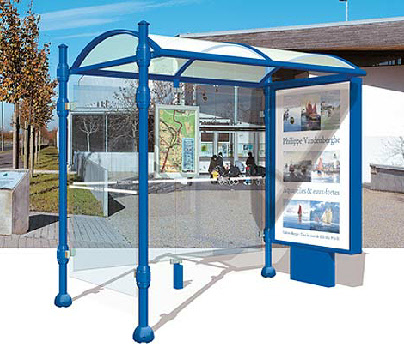

Arno Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display

A side cladding panel may be replaced by a double sided poster case.
 • Double-sided poster case model 2000 (non-illuminated)
Poster cases are manufactured in 75mm profile aluminium featuring cast aluminium corners and zinc electro plated steel backboard.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the poster display case.
 The glazing is 4mm tempered shatterproof glass.
 Poster dimensions being: H 1760 x W 1210mm.
Side and back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof
Round posts made of aluminium tube Ø 76;
 Cast aluminium collars for cladding;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.



Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.





• Choice of four top caps;

• One poster case;

• Choice of two different base covers;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.

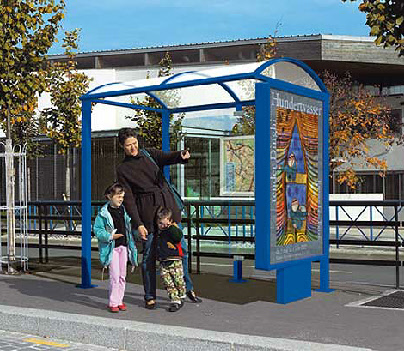

Moselle Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display

• Double-sided poster case model 2000 (non-illuminated)
Poster cases are manufactured in 75mm profile aluminium featuring cast aluminium corners and zinc electro plated steel backboard.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the poster display case.
 The glazing is 4mm tempered shatterproof glass.
 Poster dimensions being: H 1760 x W 1210mm.
Back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof
Round posts made of aluminium tube Ø 76;
 Cast aluminium collars for cladding;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.



Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.





• Choice of four top caps;

• One light box on a central pedestal;

• Choice of two different base covers;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.

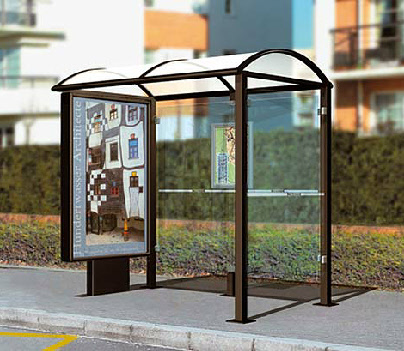

Liffey Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display - Light box
Different from a poster case a light box has internal partitions to which the posters are attached at 20 mm from the glazing and back lighting.
 Light boxes are manufactured in 150mm profile aluminium with cast aluminium corners.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the light box.
 The glazing is 4mm tempered shatterproof glass.
 Partitions are in 3mm white light diffusing polycarbonate.
 EC approved lighting by 58W florescent tubes with ballast.
 Poster dimensions being: H 1710 x W 1160mm.
Side and back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof
Round posts made of aluminium tube Ø 76;
 Cast aluminium collars for cladding;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.



Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.





• Choice of four top caps;

• One side cladding and one light box on a central pedestal;

• Choice of two different base covers;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.

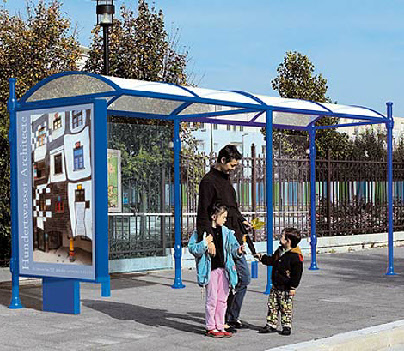

Var Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display - Light box
Different from a poster case a light box has internal partitions to which the posters are attached at 20 mm from the glazing and back lighting.
 Light boxes are manufactured in 150mm profile aluminium with cast aluminium corners.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the light box.
 The glazing is 4mm tempered shatterproof glass.
 Partitions are in 3mm white light diffusing polycarbonate.
 EC approved lighting by 58W florescent tubes with ballast.
 Poster dimensions being: H 1710 x W 1160mm.
Side and back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof

Round posts made of aluminium tube Ø 76;
Cast aluminium collars for cladding;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.



Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.





• One side cladding;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.

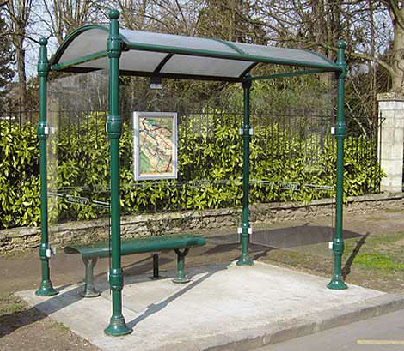

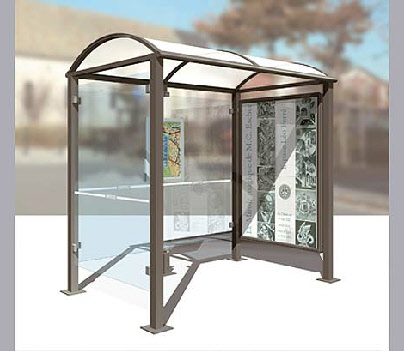

Oléron Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display

A side cladding panel may be replaced by a double sided poster case.
 • Double-sided poster case model 2000 (non-illuminated)
Poster cases are manufactured in 75mm profile aluminium featuring cast aluminium corners and zinc electro plated steel backboard.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the poster display case.
 The glazing is 4mm tempered shatterproof glass.
 Poster dimensions being: H 1760 x W 1210mm.
Side and back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof
Square posts made of steel tube 80 x 80mm on base plates;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.



Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.





• Two side cladding;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.

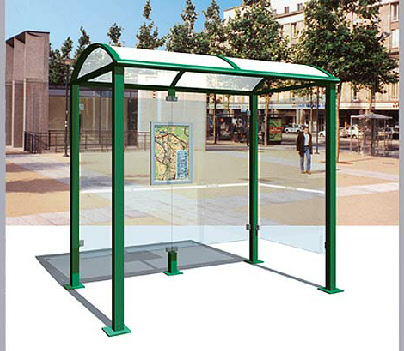

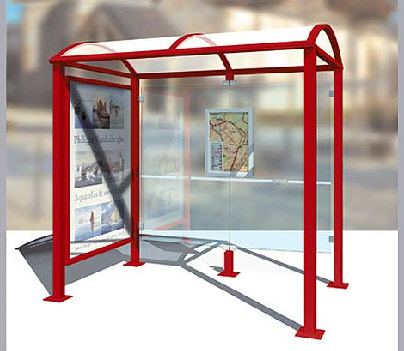

Malta Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display

A side cladding panel may be replaced by a double sided poster case.
 • Double-sided poster case model 2000 (non-illuminated)
Poster cases are manufactured in 75mm profile aluminium featuring cast aluminium corners and zinc electro plated steel backboard.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the poster display case.
 The glazing is 4mm tempered shatterproof glass.
 Poster dimensions being: H 1760 x W 1210mm.
Side and back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof
Square posts made of steel tube 80 x 80mm on base plates;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.



Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.





• One poster case;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.

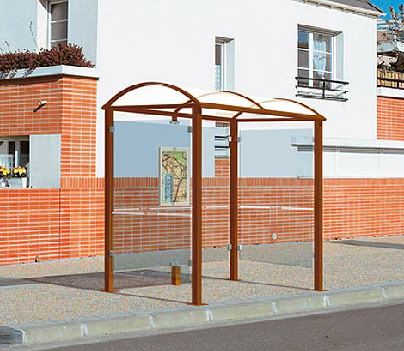

Orkney Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display

• Double-sided poster case model 2000 (non-illuminated)
Poster cases are manufactured in 75mm profile aluminium featuring cast aluminium corners and zinc electro plated steel backboard.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the poster display case.
 The glazing is 4mm tempered shatterproof glass.
 Poster dimensions being: H 1760 x W 1210mm.
Back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof
Square posts made of steel tube 80 x 80mm on base plates;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.



Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.





• One side cladding and one poster case;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.










Lérins Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display

A side cladding panel may be replaced by a double sided poster case.
 • Double-sided poster case model 2000 (non-illuminated)
Poster cases are manufactured in 75mm profile aluminium featuring cast aluminium corners and zinc electro plated steel backboard.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the poster display case.
 The glazing is 4mm tempered shatterproof glass.
 Poster dimensions being: H 1760 x W 1210mm.
Side and back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof
Square posts made of steel tube 80 x 80mm on base plates;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.



Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.





• One light box on a central pedestal;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.










Sylt Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display - Light box
Different from a poster case a light box has internal partitions to which the posters are attached at 20 mm from the glazing and back lighting.
 Light boxes are manufactured in 150mm profile aluminium with cast aluminium corners.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the light box.
 The glazing is 4mm tempered shatterproof glass.
 Partitions are in 3mm white light diffusing polycarbonate.
 EC approved lighting by 58W florescent tubes with ballast.
 Poster dimensions being: H 1710 x W 1160mm.
Back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof
Square posts made of steel tube 80 x 80mm on base plates;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.



Urban Furniture bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.



• One side cladding and one light box on a central pedestal;

• Painted in one of our RAL colours;

• Supplied with a timetable notice board;

• Available in two lengths: 2500 and 5000mm.










Rhodes Bus Shelter

Timetable notice board
All the Urban Furniture Bus Shelters are supplied with a timetable notice board.
 Silver anodised 30mm profile aluminium with zinc electro plated steel backboard.
 The doors have a tamper proof lock, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 Shock and UV resistant plexichoc glazing.
 H 75 x W 55mm..
Advertising & Information display - Light box
Different from a poster case a light box has internal partitions to which the posters are attached at 20 mm from the glazing and back lighting.
 Light boxes are manufactured in 150mm profile aluminium with cast aluminium corners.
 The doors have 2 tamper proof locks, wear-resistant and warp-proof integrated hinges which create a double watertight seal with the frame.
 For ease of use they have raising doors on gas struts, which enable the replacement of the door in the event of vandalism without having to remove the light box.
 The glazing is 4mm tempered shatterproof glass.
 Partitions are in 3mm white light diffusing polycarbonate.
 EC approved lighting by 58W florescent tubes with ballast.
 Poster dimensions being: H 1710 x W 1160mm.
Side and back cladding
Shatter-resistant toughened 8mm safety glass;
 Fixed by cast aluminium clamping device making for easy replacement in the event of vandalism.
Structure and Roof
Square posts made of steel tube 80 x 80mm on base plates;
 Three curved aluminium profile arcs;
 Two aluminium crossbeams 40 x 60;
 Two aluminium profile rainwater gutters;
 Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.
