Urban Furniture
Back.

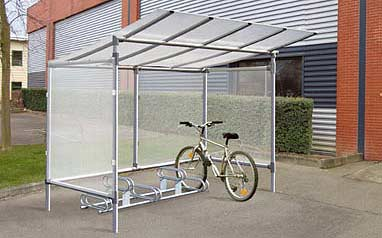

Anodised aluminium tubular uprights Ø 50 for assembly with cast aluminium connectors, locked in place with self-tapping screws.



Roof and cladding

10mm translucent anti-UV cellular polycarbonate glazing panels on an anodised aluminium profile frame. Side and back cladding is available (optional).



Extension

Capacity can be increased by adding extension units to the basic unit for 5 further bicycles.

Steel 5 space shelter

Same characteristics as the aluminium 5 space shelter, but made of 50mm zinc-electro plated steel tubes.



Optional bicycle stands

5 space bicycle stand in galvanised steel tube. Designed to fit in the shelter, alternately high/low stand for optimum use of space. May be used free standing or anchored to the ground (drilled with holes 10mm). Bolts not supplied.



Permanent fixing into concrete.

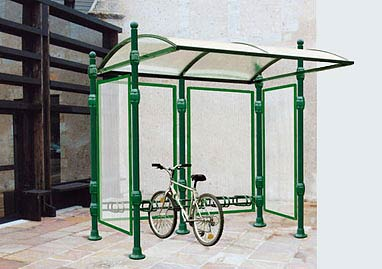

Aluminium/Steel 5 bicycle shelter

Aluminium tube uprights: Ø 76. Height above ground (HAG) between 2725mm and 2850mm depending on top cap: City, Agora, Sphere or Europe.



All Cast aluminium decorative accessories include top caps, collars and the base covers. Stainless steel screw fittings supplied.

Base 1 for Europe or Sphere top caps, Base 2 for Agora or City top caps.



Roof

Frame comprising two aluminium tube beams : 40 x 60, attached by collars to the posts, two rolled aluminium rainwater gutters.

Curved aluminium profile roof arcs. Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing. It is inserted in the two gutters and between the arcs.

Optional side cladding, back cladding and their attachment collars



Cladding: Aluminium profile frame, glazing made of translucent cellular structure polycarbonate, thickness: 10mm, UV-stabilised.

Side cladding panels supplied in pairs, to be attached to posts by collars.

Back cladding comprising 2 panels with centre upright, to be attached to the posts by collars.



6-space bicycle stand

Included with the shelter and/or the extension units. Zinc-plated steel, painted in our RAL colours.



6-space bicycle stand Included with the shelter and/or the extension units.

Zinc-plated steel, painted in our RAL colours.



Connecting modules can be supplied.



Permanent fixing into concrete.

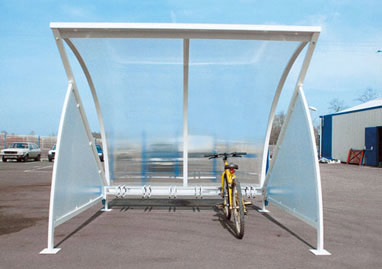

Decorative aluminium shelter

A contemporary shape: Supporting members and crossbeams made from tubular steel assembled by bolts, nuts, caps and washers, (supplied).



Roof and cladding

Aluminium profile cross member and rainwater gutter.

Canopy made of 10mm translucent anti-UV cellular polycarbonate glazing.

White expanded 10mm PVC side cladding, supplied in pairs.



Bicycle stand

Integral to this shelter is a 6- space bicycle stand made of steel tube: Ø 22 attached to crossbeam by stainless steel screws (supplied). Colour matches that of the shelter.



Finish and assembly

Available in our RAL colours. Installation on base plates and expansion plugs supplied.



Permanent fixing into concrete.

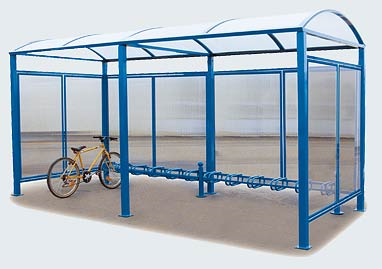

“Moonshape” bicycle shelter

A sturdy unit. Framework comprising steel 80 x 80mm uprights, mounted on base plates. Upper part includes a U section to accommodate the roof.

2 versions: Basic 2500mm unit or a version with extension module (picture).



Roof

The roof framework features two aluminium tubular crossbeams and two aluminium rainwater gutters that are fixed to built-in U-sections of uprights.



Cladding

All cladding is optional. Side cladding and/or back cladding is delivered in two parts. Aluminium profile frame, 10mm translucent anti-UV cellular polycarbonate glazing.



Bicycle stand options

Featured is 6-space bicycle stand with choice of top cap and extension modules by multiples of 6 spaces.



Finish and assembly

Painted, galvanised steel. Available in our RAL colours. Assembly instructions supplied. Installation on base plates and expansion plugs supplied.



Permanent fixing into concrete.

Square tube bicycle shelter
