Features handrail. Perfectly integrating in all locations whilst retaining a continuous line. Available in two lengths. Zinc-plated steel, painted in our RAL colours.

Length 1500 & 1000.

Lisbon barriers can be changed into removable barriers using the Lockbloc socket system.

Lisbon

Steel tube: 80 x 40. Black painted cast aluminium post caps. Available in two lengths. Zinc-plated steel, painted in our RAL colours.

Length 1580 & 1080.

Pagoda barriers can be changed into removable barriers using the Lockbloc socket system.

Pagoda

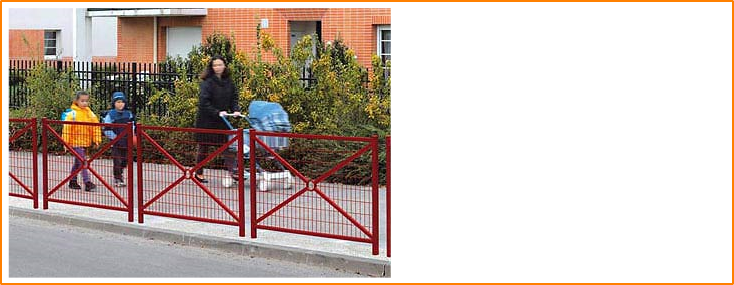

Ideal for maximum safety protection outside schools, featuring 3mm mesh. Zinc-plated steel, painted in our RAL colours.

Length 1470.

Most of our decorative barriers can be changed into removable barriers using the the Lockbloc socket system.

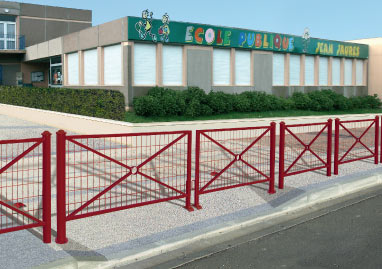

Jersey Safety

Complimentary to the safety guard rail. Ideal for maximum safety protection outside schools. Zinc-plated steel, painted in our RAL colours.

Length 1470

Jersey barriers can be changed into removable barriers using the Lockbloc socket system.

Jersey

Pagoda

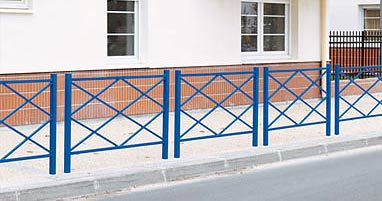

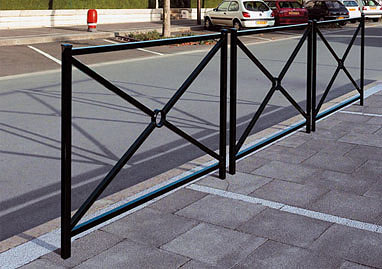

Classic & elegant, the Diamond blends well with existing street furniture. Hard wearing, Zinc-plated steel, painted in our RAL colours.

Length 1500.

Diamond barriers can be changed into removable barriers using the Lockbloc socket system.

Diamond

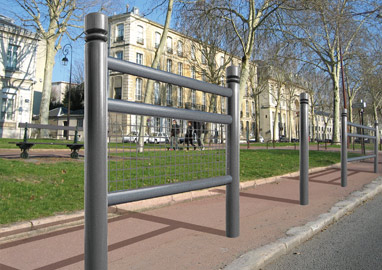

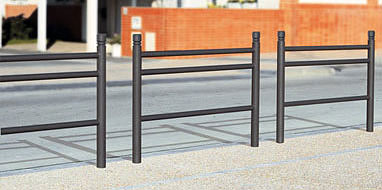

Its contemporary design enhances modern architecture. Its four different top cap versions available are in perfect harmony with our posts, low posts and bollards. One standard length: 1572. Zinc-plated steel, painted in our RAL colours.

Trio barriers can be changed into removable barriers using the Lockbloc socket system.

Trio

The Trio guardrail with mesh for areas requiring maximum safety protection. Its four different top cap versions available are in perfect harmony with our posts. One standard length: 1572. The mesh is laser cut from 3mm sheet steel ensuring maximum strength. Zinc-plated steel, painted in our RAL colours.

Trio barriers can be changed into removable barriers using the Lockbloc socket system.

Trio Mesh

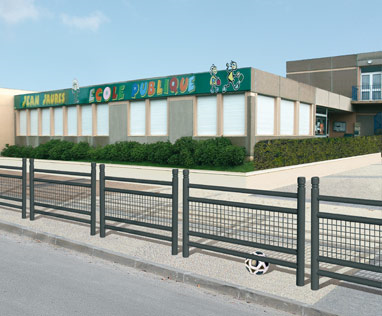

Enhanced version of the Trio railing, the Linea railing offers maximum safety protection thanks to its standard laser cut mesh and 4th bar in the lower part.

• Ø 76 and 50mm steel tubes;

• Length: 1572mm;

• ‘City’ aluminium top cap;

• The mesh is laser cut from 3mm sheet steel ensuring maximum strength;

• Zinc-plated steel, painted in our RAL colours.

Linea

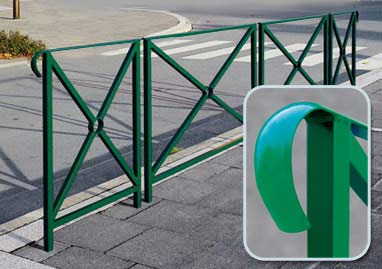

With their solid steel handrail and 35 x 35 x 3 uprights, these guardrails are amongst the most solid products available.

Available with/without end grips, with/without rosette for individual or continuous installation.

Zinc-plated steel, painted in our RAL colours.

Length 1500 & 800.

Barrier with handrail

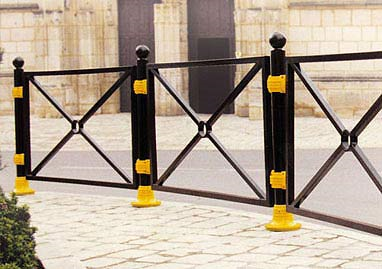

Stylish posts, frames and base covers, different colour combinations, and a multiplicity of installation options with collars and satellites, these barriers will provide a note of originality in every location.

Posts

Steel tube: Ø 76 equipped with welded or riveted top cap. Four top cap versions: City, Agora, Sphere, and Europe.

Frames

Diamond: Steel tube: 35 x 35 - Decorative steel tube: 30 x 30 and 20 x 20.

Single cross: Steel tube: 35 x 35 - Decorative steel tube: 30 x 30 and round Ø 101.6/10.

Modular

Collars and satellites

Cast aluminium post attachment collar. Attachment with Ø 8 stainless steel Hex socket cap head screws. Supplied pre-fitted for easy installation. Cast aluminium satellites for attaching the frame to the collar with choice of installation angles.

Decorative base covers

Equipped with countersunk Hex socket cap head screws for locking in place on the posts.

Base plate 1, for Sphere or Europe version.

Base plate 2, for City or Agora version.

Finish and installation

Frames are Zinc-plated steel, painted in our RAL colours. Collars, base covers and satellites in cast aluminium primed and painted in our RAL. Installation by concreting directly in the ground, with or without base covers.

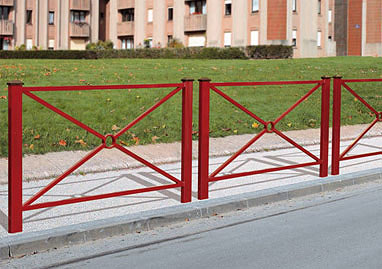

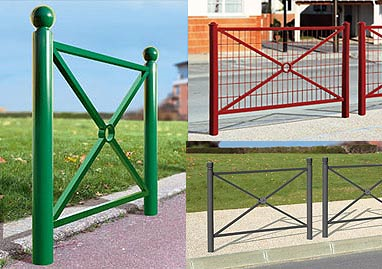

Suitable for any city style, elegant and timeless guard rails with a variety of individual details.

• Two sizes.

• Three frames: single cross, rosette or mesh.

• Four cast aluminium, riveted top caps: City, Agora, Sphere, and Europe.

Zinc-plated steel, painted in our RAL colours.

Province

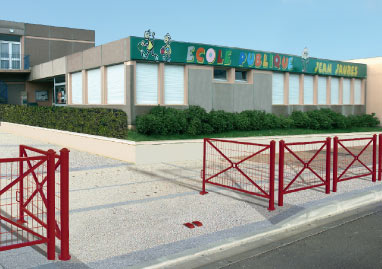

Province - Access gate option

Allows occasional access to authorised vehicles or emergency services while ensuring continuity of style.

Pivots on the internal tube. Using a bolt and Padlock, can be locked in either open or closed positions. 2 stops per gate supplied (to concrete into the ground). Available as left or right opening.

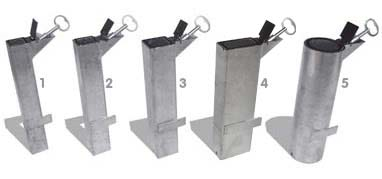

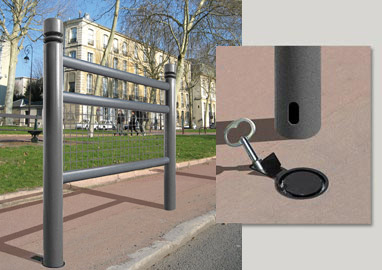

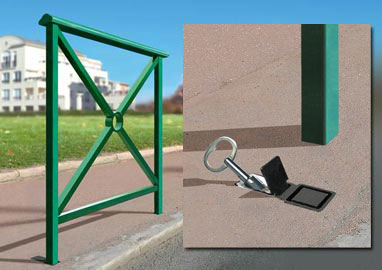

Lockbloc system

1- Lisbon barrier. 2- Jersey safety guard rail & Jersey guard rail. 3- Diamond barrier. 4- Pagoda barrier. 5- Trio & Province range guard rail.

All guard rails be fitted to the Lockbloc socket system allowing access to authorised vehicles or emergency services.

• 100% galvanised for complete corrosion protection,the sockets provide total stability and form secure and tamper-proof guard rails thanks to the unique locking system.

• Locking with an 11mm triangle key screw, the barrier is easily lifted out. Installation recommended with 2 Lockbloc sockets per guard rail.

• Static galvanised lacquered central flush boss.

• Drains naturally through sub surface gravel.

• A reservoir allows the accumulation of sand, gravel, etc. and can be removed for easy maintenance.

• The lock is protected by a black-lacquered flap.
